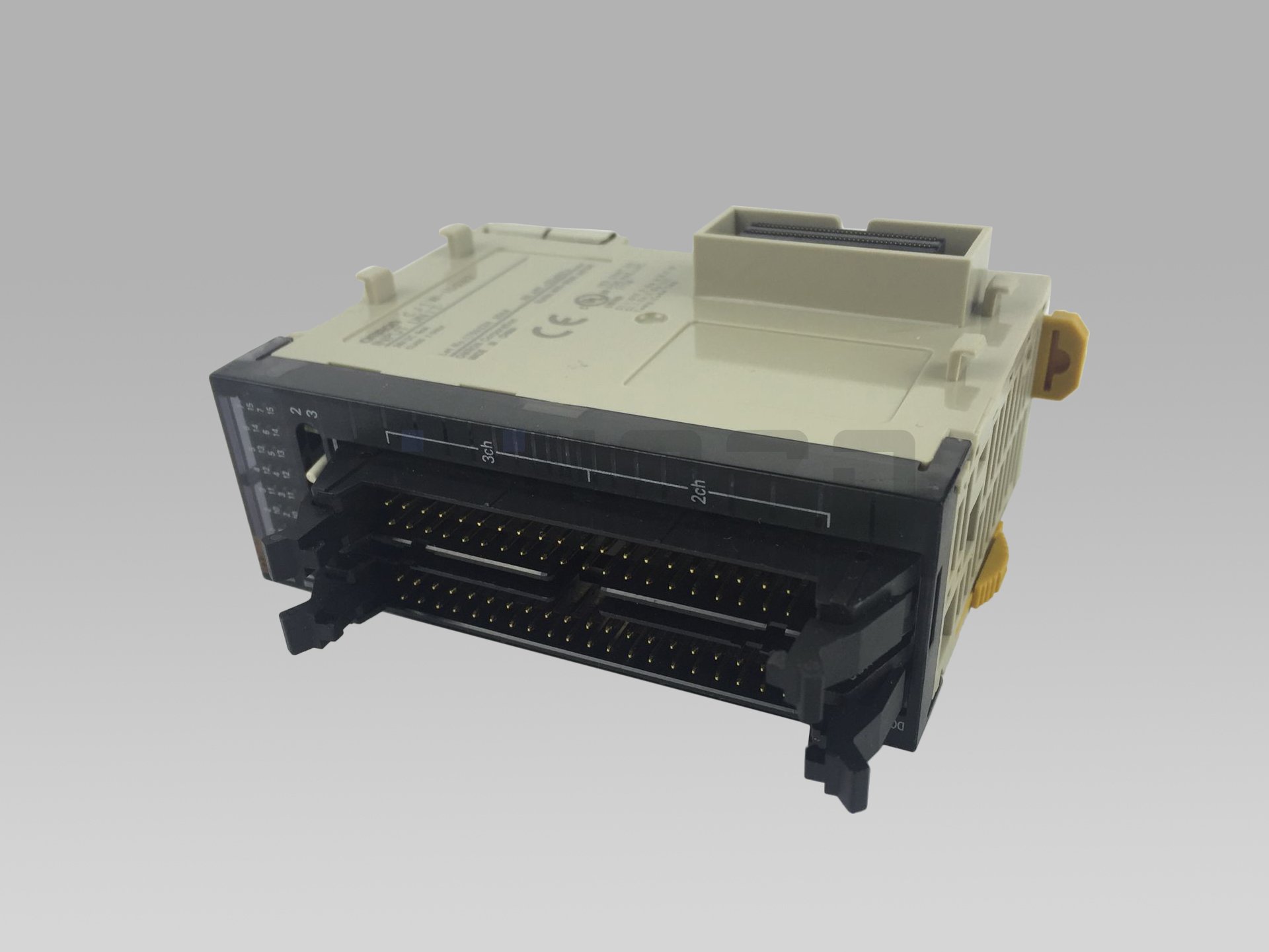

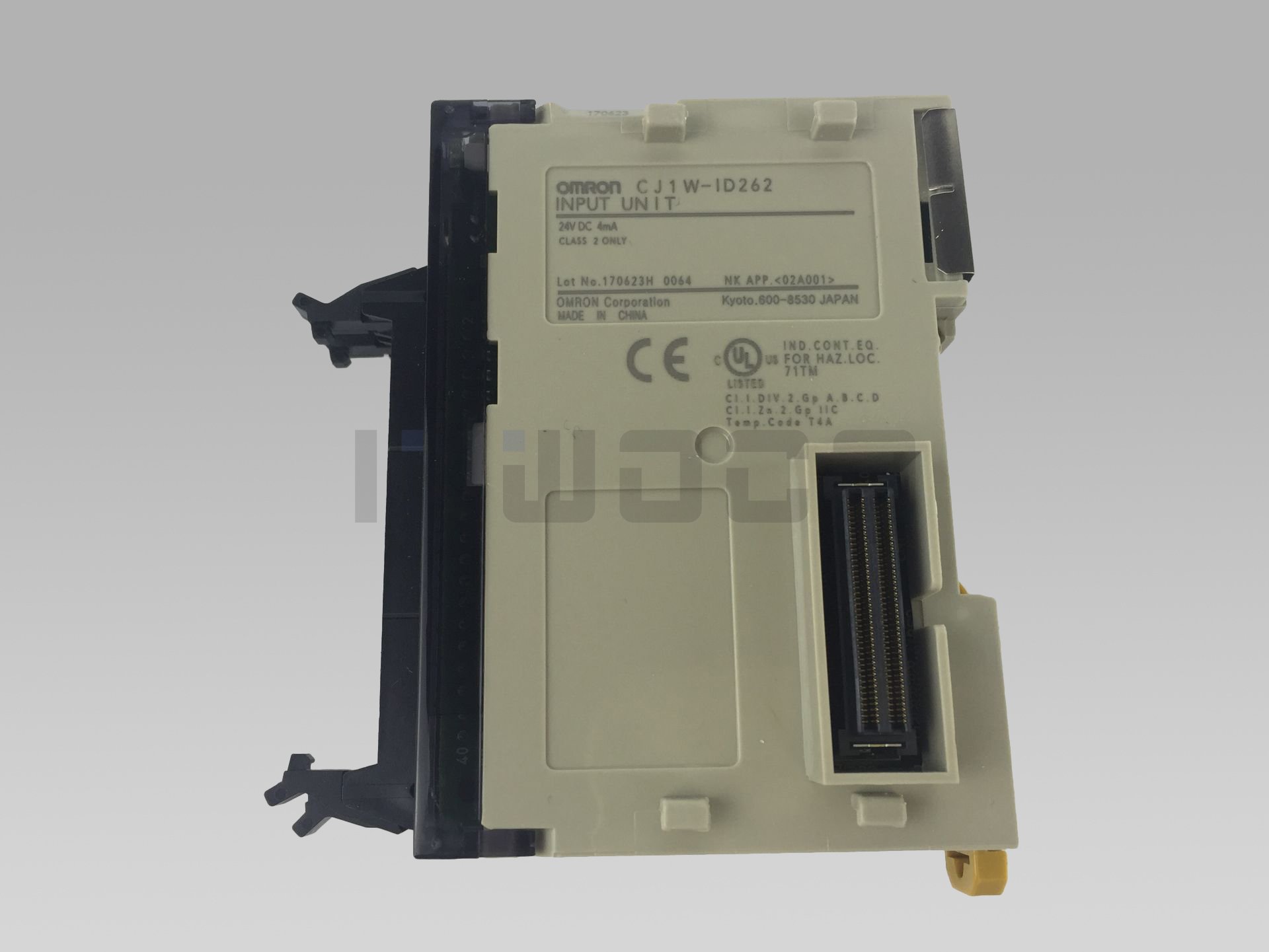

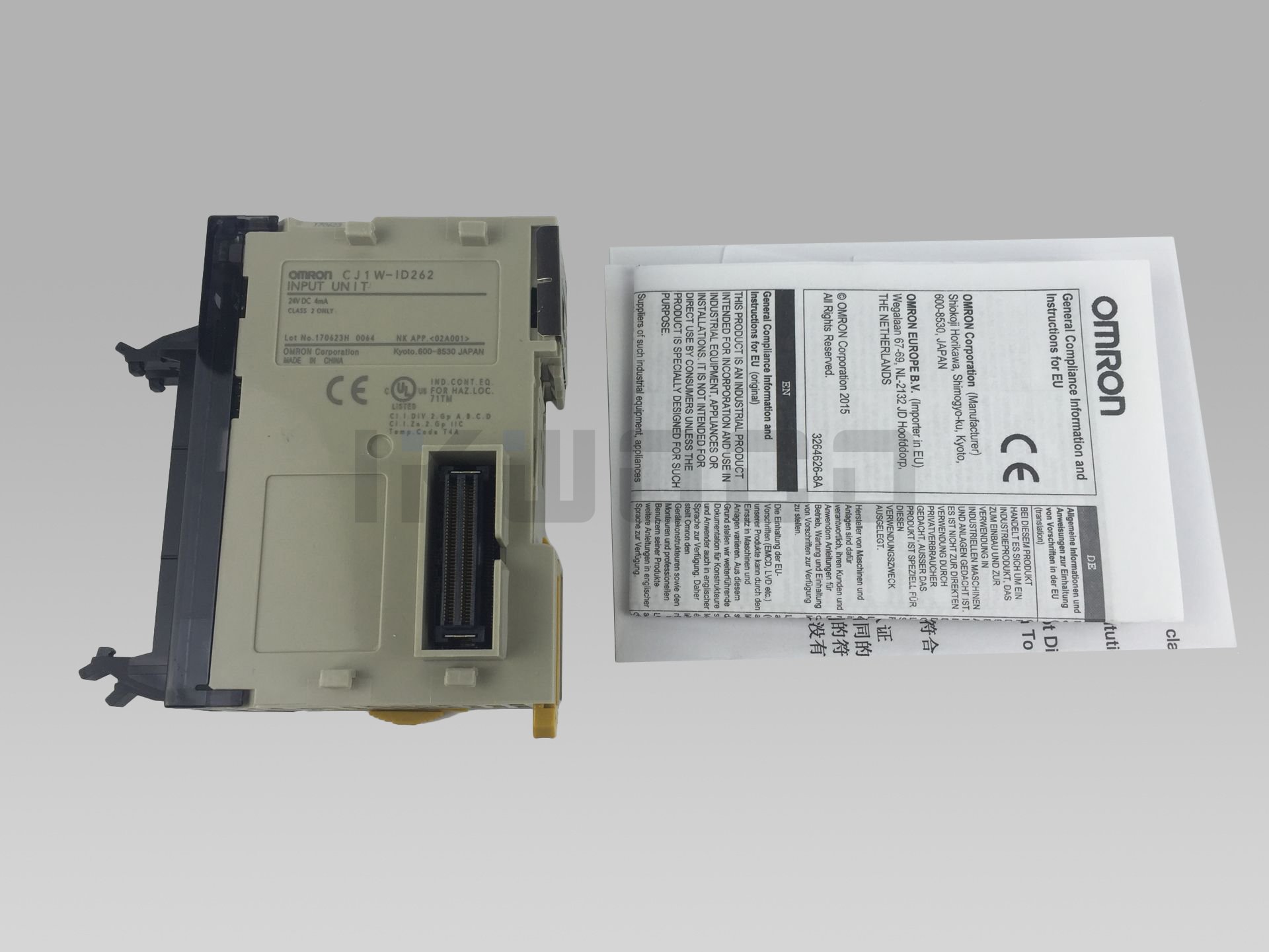

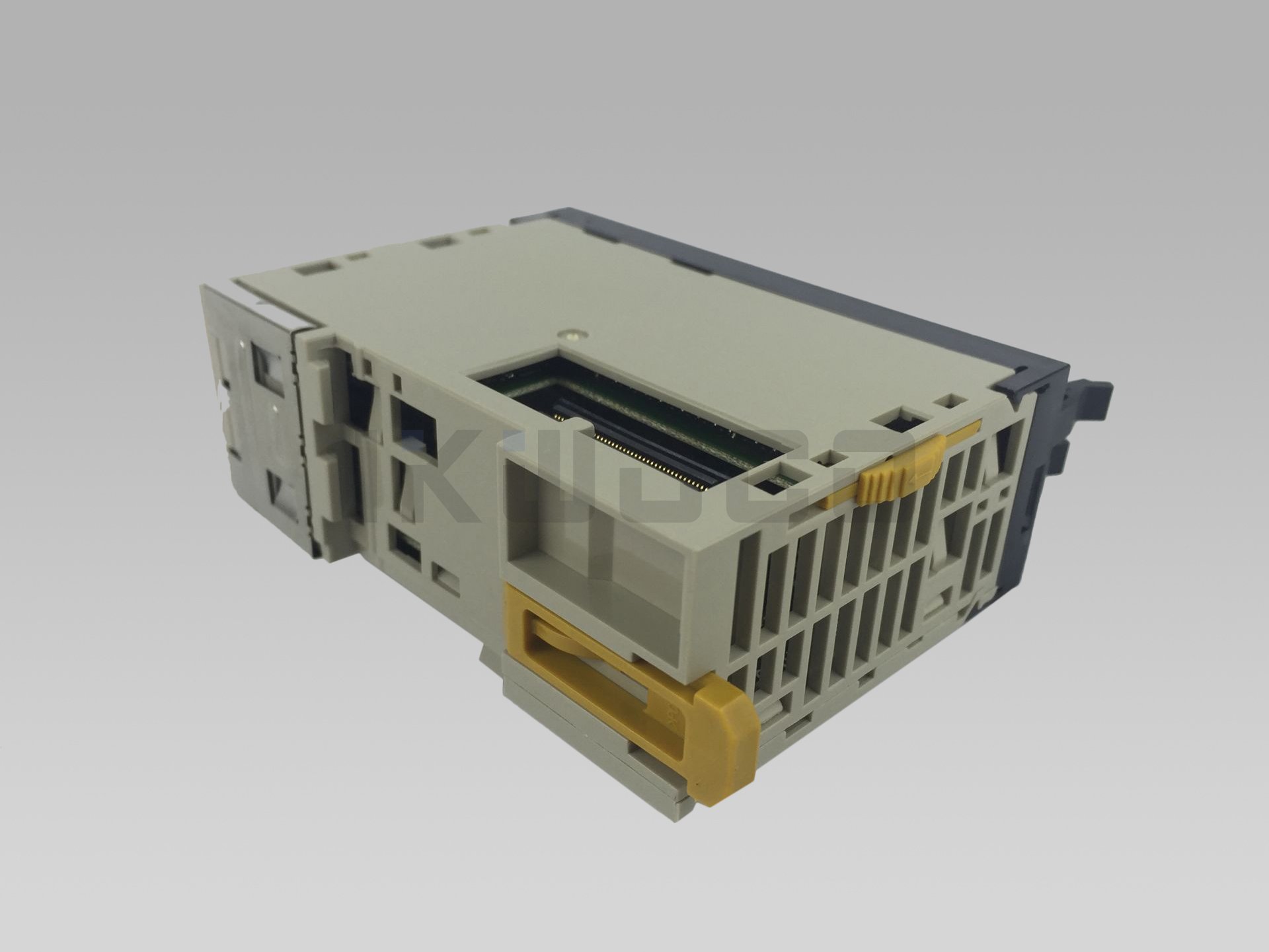

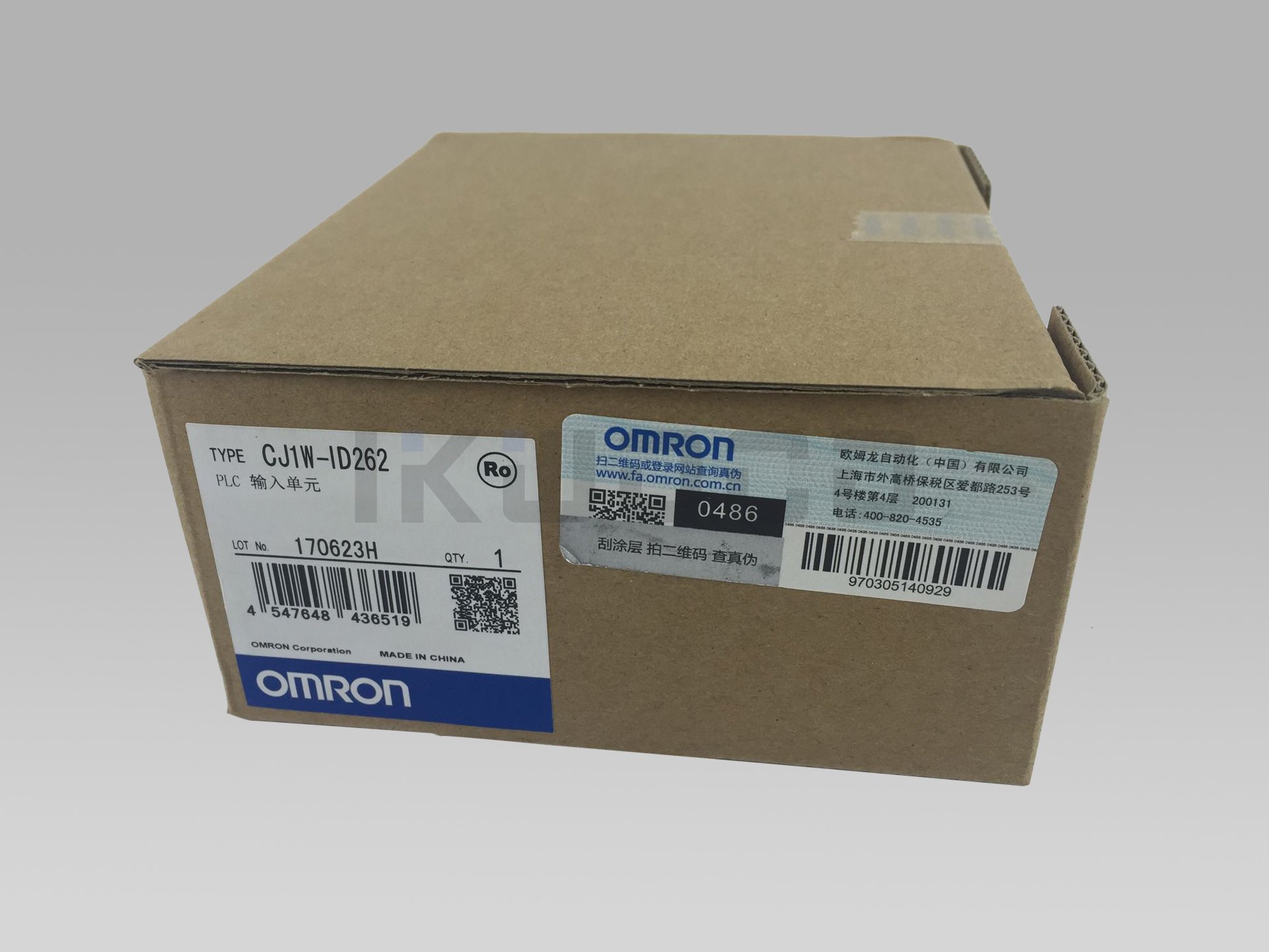

Brand: OMRON
Model Number: CJ1W-ID262
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Name | 64-point DC Input Unit with MIL Connector | |
|---|---|---|
| Model | CJ1W-ID262 | |
| Rated Input Voltage | 24 VDC | |
| Rated Input Voltage Range | 20.4 to 26.4 VDC | |
| Input Impedance | 5.6 kΩ | |
| Input Current | 4.1 mA typical (at 24 VDC) | |
| ON Voltage/ON Current | 19.0 VDC min./3 mA min. | |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. | |
| ON Response Time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) * | |
| OFF Response Time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) * | |
| Number of Circuits | 64 (16 points/common, 4 circuits) | |
| Number of Simultaneously ON Points |
50% (8 points/common) simultaneously ON (at 24 VDC) (Refer to the following illustrations.) | |
| Insulation Resistance | 20 MΩ min. between external terminals and the GR terminal (100 VDC) | |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
|
| Internal Current Consumption | 90 mA max. | |
| Weight | 110 g max. | |
| Unit type |
Product name |
Specifications | Current consump- tion (A) |
Model | Stand- ards |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| I/O points |
Input voltage and current |
Commons | External con- nection |
No. of words allo- cated |
5 V | 24 V | ||||
| CJ1 Basic I/O Units |
DC Input Units  |
8 inputs | 12 to 24 VDC, 10 mA |
Independent contacts |
Removable terminal block |
1 word | 0.09 | — | CJ1W-ID201 | UC1, N, L, CE |
| 16 inputs | 24 VDC, 7 mA |
16 points, 1 common |
Removable terminal block |
1 word | 0.08 | — | CJ1W-ID211 | |||
| 16 inputs (High speed) |
24 VDC, 7 mA |
16 points, 1 common |
Removable terminal block |
1 word | 0.13 | — | CJ1W-ID212 | N, L, CE |
||
| 32 inputs | 24 VDC, 4.1 mA |
16 points, 1 common |
Fujitsu/ OTAX connector |
2 words | 0.09 | — | CJ1W-ID231 | UC1, N, L, CE |
||
| 32 inputs | 24 VDC, 4.1 mA |
16 points, 1 common |
MIL connector |
2 words | 0.09 | — | CJ1W-ID232 | |||
| 32 inputs (High speed) |
24 VDC, 4.1 mA |
16 points, 1 common |
MIL connector |
2 words | 0.20 | — | CJ1W-ID233 | N, L, CE |
||
| 64 inputs | 24 VDC, 4.1 mA |
16 points, 1 common |
Fujitsu/ OTAX connector |
4 words | 0.09 | — | CJ1W-ID261 | UC1, N, L, CE |
||
| 64 inputs | 24 VDC, 4.1 mA |
16 points, 1 common |
MIL connector |
4 words | 0.09 | — | CJ1W-ID262 | |||
| AC Input Units  |
8 inputs | 200 to 24 VAC, 10 mA (200 V, 50 Hz) |
8 points, 1 common |
Removable terminal block |
1 words | 0.08 | — | CJ1W-IA201 | ||
| 16 inputs | 100 to 120 VAC, 7 mA (100 V, 50 Hz) |
16 points, 1 common |
Removable terminal block |
1 words | 0.09 | — | CJ1W-IA111 | |||
