Brand: OMRON
Model Number: CJ1W-ID263
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.

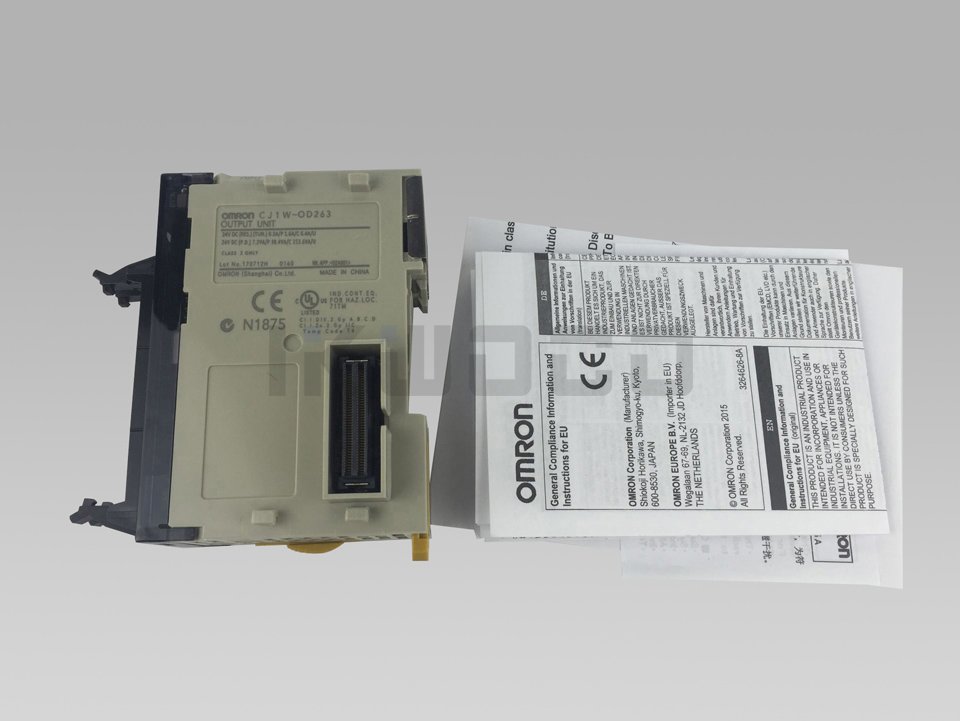

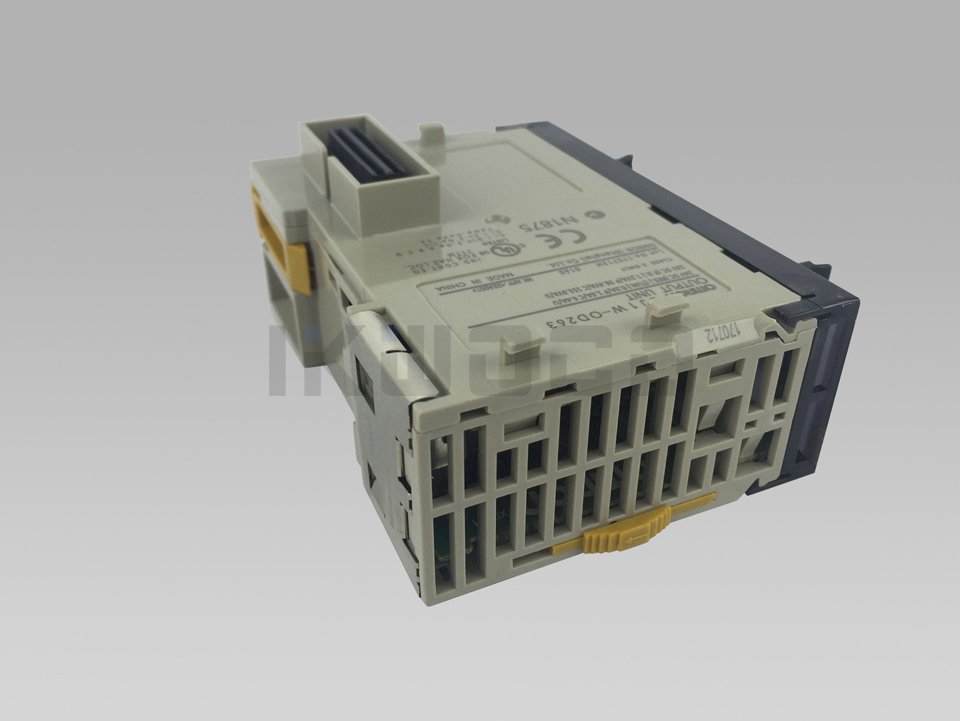

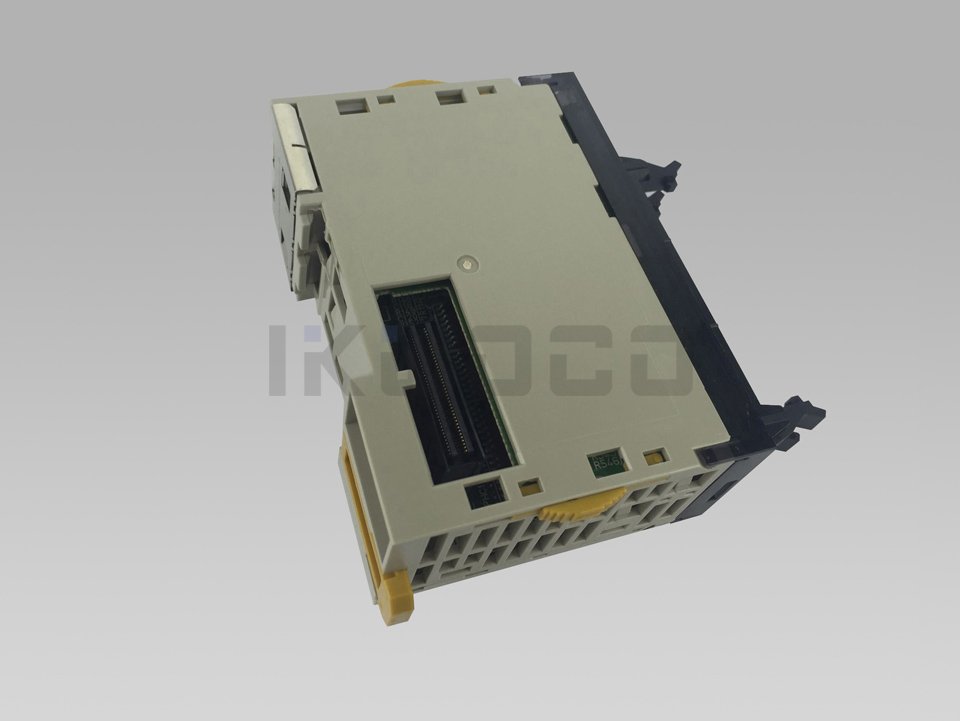

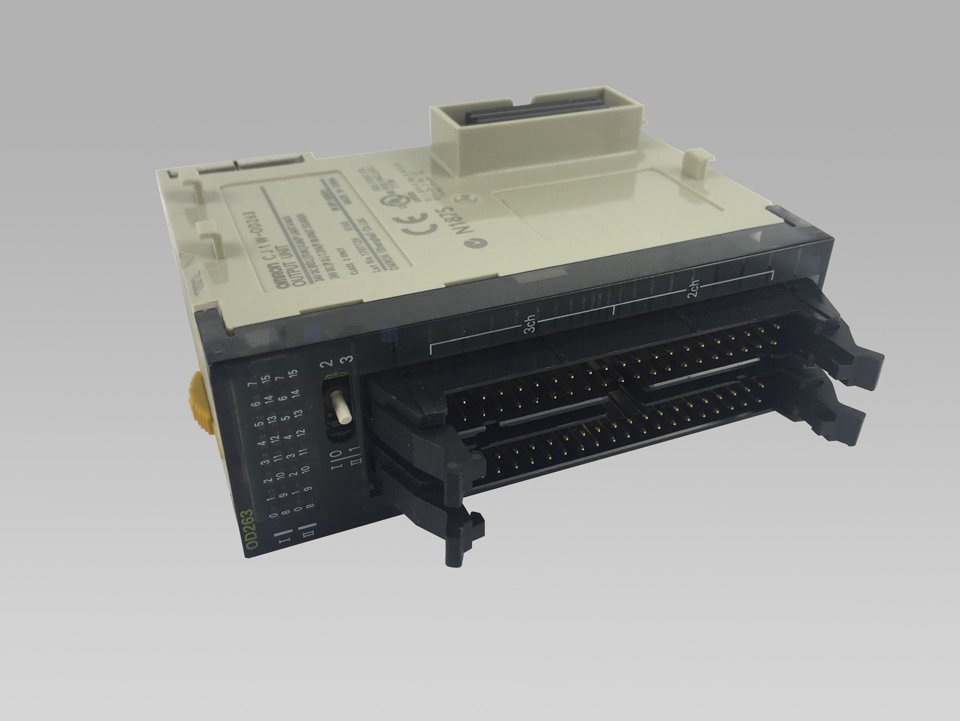

| Name | 64-point Transistor Output Unit with MIL Connectors (Sinking Outputs) | |
|---|---|---|
| Model | CJ1W-OD263 | |
| Rated Voltage | 12 to 24 VDC | |
| Operating Load Voltage Range |
10.2 to 26.4 VDC | |
| Maximum Load Current |
0.3 A/point, 1.6 A/common, 6.4 A/Unit | |
| Maximum Inrush Current |
3.0 A/point, 10 ms max. | |
| Leakage Current | 0.1 mA max. | |
| Residual Voltage | 1.5 V max. | |
| ON Response Time |
0.5 ms max. | |
| OFF Response Time |
1.0 ms max. | |
| Insulation Resistance |
20 MΩ between the external terminals and the GR terminal (100 VDC) | |
| Dielectric Strength |
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
|
| Number of Circuits |
64 (16 points/common, 4 circuits) | |
| Internal Current Consumption |
170 mA max. | |
| Fuse | None | |
| External Power Supply |
10.2 to 26.4 VDC, 50 mA min. | |
| Weight | 110 g max. | |
| Unit type |
Product name |
Specifications | No. of words allo- cated |
Current consump- tion (A) |
Model | Stand- ards |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type |
I/O points |
Maximum switching capacity |
Commons | External con- nection |
5 V | 24 V | |||||
| CJ1 Basic I/O Units |
Relay Contact Output Units  |
— | 8 outputs |
250 VAC/ 24 VDC, 2 A |
Inde- pendent contacts |
Removable terminal block |
1 words |
0.09 | 0.048 max. |
CJ1W-OC201 | UC1, N, L, CE |
| — | 16 outputs |
250 VAC/ 24 VDC, 2 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.11 | 0.096 max. |
CJ1W-OC211 | |||
| Triac Output Unit  |
— | 8 outputs |
250 VAC, 0.6 A |
8 points, 1 common |
Removable terminal block |
1 words |
0.22 | — | CJ1W-OA201 | ||
| Tran- sistor Output Units  |
Sinking | 8 outputs |
12 to 24 VDC, 2 A |
4 points, 1 common |
Removable terminal block |
1 words |
0.09 | — | CJ1W-OD201 | ||
| Sinking | 8 outputs |
12 to 24 VDC, 0.5 A |
8 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD203 | |||
| Sinking | 16 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD211 | |||
| Sinking | 16 outputs (High speed) |
24 VDC, 0.5 A |
16 points, 1 common |
Removable terminal block |
1 words |
0.15 | — | CJ1W-OD213 | N, L, CE |
||
| Sinking | 32 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
Fujitsu/ OTAX connector |
2 words |
0.14 | — | CJ1W-OD231 | UC1, N, L, CE |
||
| Sinking | 32 outputs |
12 to 24 VDC, 0.5 A |
16 points, 1 common |
MIL connector |
2 words |
0.14 | — | CJ1W-OD233 | |||
| Sinking | 32 outputs (High speed) |
24 VDC, 0.5 A |
16 points, 1 common |
MIL connector |
2 words |
0.22 | — | CJ1W-OD234 | N, L, CE |
||
| Sinking | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
Fujitsu/ OTAX connector |
4 words |
0.17 | — | CJ1W-OD261 | UC1, N, L, CE |
||
| Sinking | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
MIL connector |
4 words |
0.17 | — | CJ1W-OD263 | |||
| Sourcing | 8 outputs |
24 VDC, 2 A Short- circuit protection |
4 points, 1 common |
Removable terminal block |
1 words |
0.11 | — | CJ1W-OD202 | |||
| Sourcing | 8 outputs |
24 VDC, 0.5 A Short- circuit protection |
8 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD204 | |||
| Sourcing | 16 outputs |
24 VDC, 0.5 A Short- circuit protection |
16 points, 1 common |
Removable terminal block |
1 words |
0.10 | — | CJ1W-OD212 | |||
| Sourcing | 32 outputs |
24 VDC, 0.5 A Short- circuit protection |
16 points, 1 common |
MIL connector |
2 words |
0.15 | — | CJ1W-OD232 | |||
| Sourcing | 64 outputs |
12 to 24 VDC, 0.3 A |
16 points, 1 common |
MIL connector |
4 words |
0.17 | — | CJ1W-OD262 | |||
