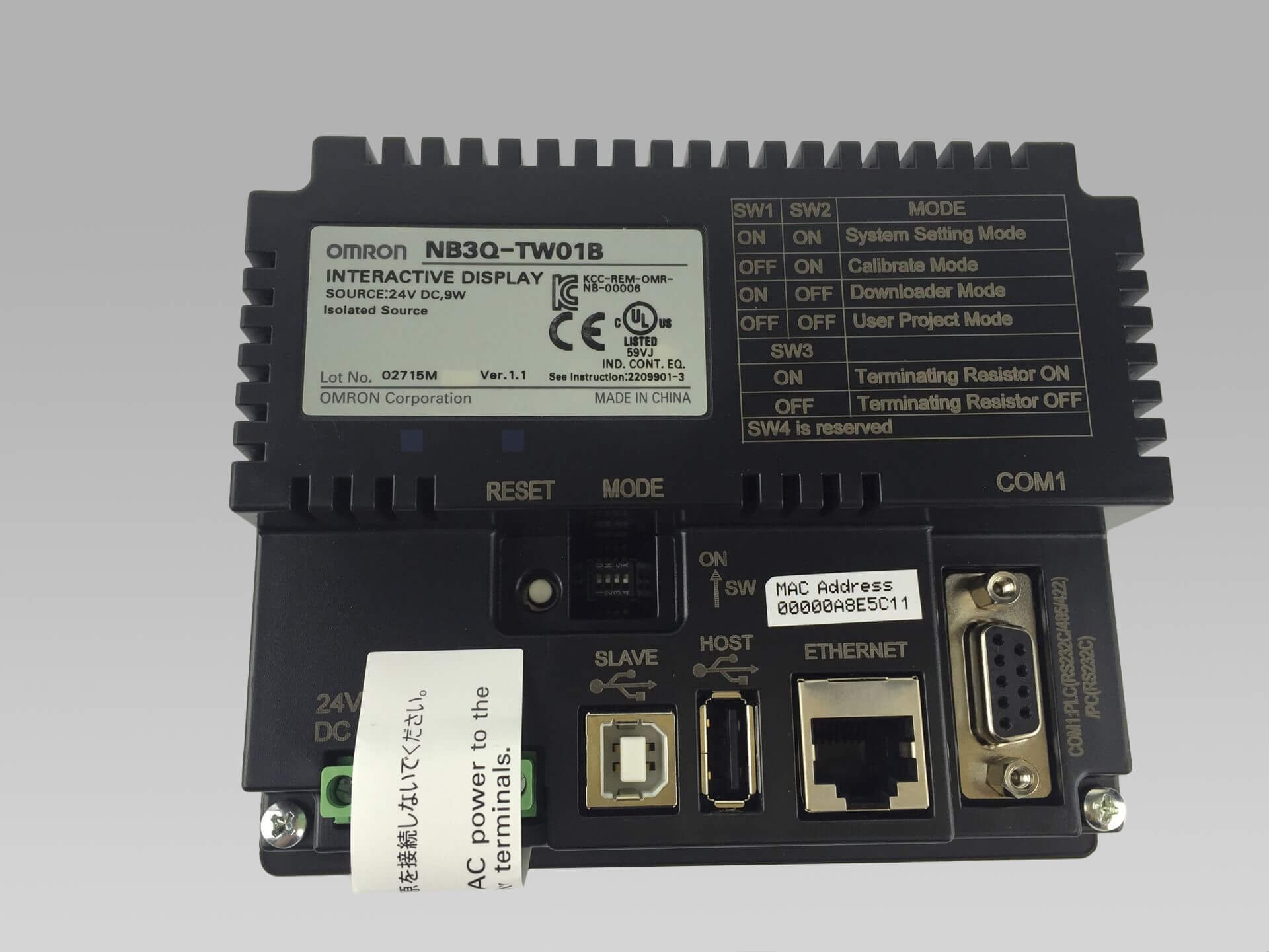

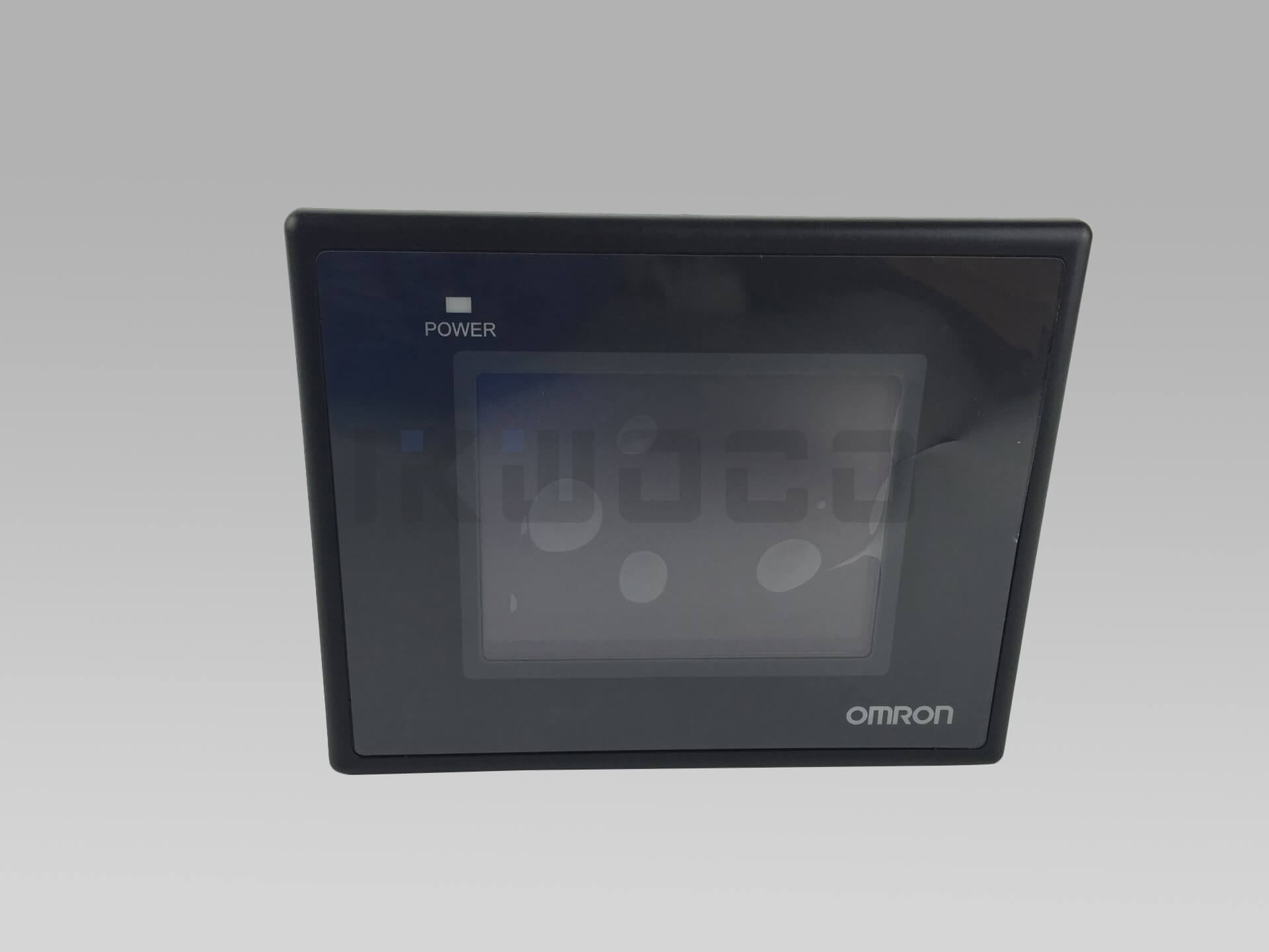

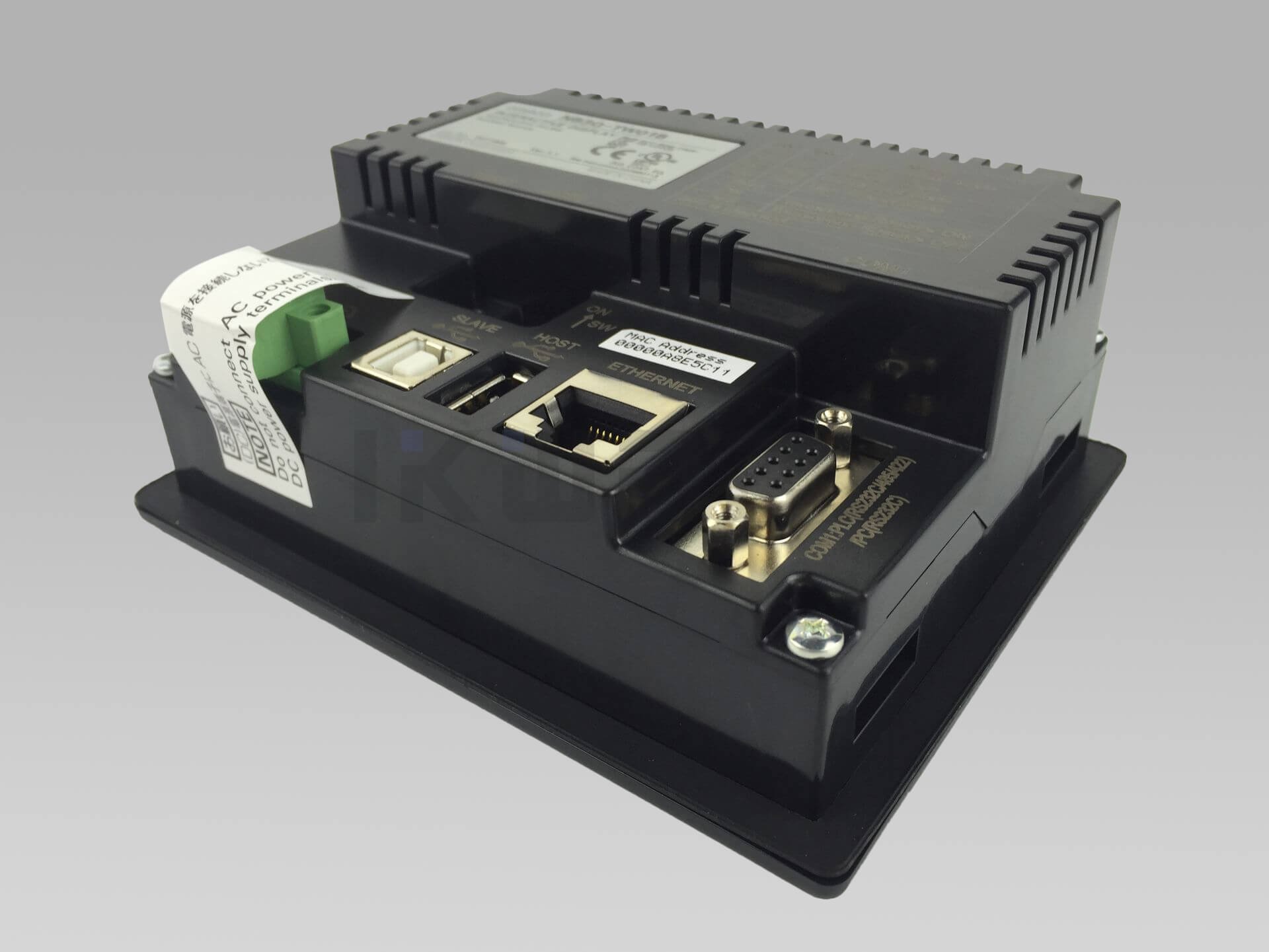

Brand: OMRON
Model Number: NB3Q-TW01B
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Product name | Specifications | Model |
|---|---|---|
| NB3Q | 3.5 inch, TFT LCD, Color, 320 × 240 dots | NB3Q-TW00B-V1 |
| 3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet | NB3Q-TW01B-V1 | |
| NB5Q | 5.7 inch, TFT LCD, Color, 320 × 240 dots | NB5Q-TW00B-V1 |
| 5.7 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet | NB5Q-TW01B-V1 | |
| NB7W | 7 inch, TFT LCD, Color, 800 × 480 dots | NB7W-TW00B-V1 |
| 7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet | NB7W-TW01B-V1 | |
| NB10W | 10.1 inch, TFT LCD, Color, 1024 × 600 dots, USB Host, Ethernet | NB10W-TW01B-V1 |
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW01B-V1 | |
| Display type | 3.5″ TFT LCD | 5.7″ TFT LCD | 7″ TFT LCD | 10.1″ TFT LCD | |||
| Display resolution (H×V) |
320 × 240 | 320 × 240 | 800 × 480 | 1024 × 600 | |||
| Number of colors | 65536 | ||||||
| Backlight | LED | ||||||
| Backlight lifetime | 50,000 hours of operating time at the normal temperature (25°C)* | ||||||
| Touch panel | Analog resistive membrane type, resolution 1024 × 1024, life: 1 million touch operations | ||||||
| Dimensions in mm (H×W×D) |
103.8 × 129.8 × 52.8 | 142 × 184 × 46 | 148 × 202 × 46 | 210.8 × 268.8 × 54 | |||
| Weight | 310 g max. | 320 g max. | 650 g max. | 660 g max. | 700 g max. | 705 g max. | 1465 g max. |
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW01B-V1 | |
| Internal memory |
128 MB (including system area) | ||||||
| Memory interface |
— | USB Memory |
— | USB Memory |
— | USB Memory |
USB Memory |
| Serial (COM1) | RS-232C/422A/485 (not isolated), Transmission distance: 15 m Max. (RS-232C), 500 m Max. (RS-422A/485), Connector: D-Sub 9-pin |
RS-232C, Transmission distance: 15 m Max., Connector: D-Sub 9-pin |
|||||
| Serial (COM2) | — | RS-232C/422A/485 (not isolated), Transmission distance: 15 m Max. (RS-232C), 500 m Max. (RS-422A/485), Connector: D-Sub 9-pin |
|||||
| USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5 V, 150 mA (NB[][]-TW01B-V1 only) | ||||||
| USB Slave | Equivalent to USB 2.0 full speed, type B, Transmission distance: 5 m | ||||||
| Ethernet | — | 10/100 base-T | — | 10/100 base-T | — | 10/100 base-T | 10/100 base-T |
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW00B-V1 | TW01B-V1 | TW01B-V1 | |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15 to 15%) | ||||||
| Power consumption |
3 W | 4 W | 6 W | 7 W | 7 W | 7 W | 8 W |
| Battery lifetime | 5 years (at 25°C) * | ||||||
| Enclosure rating (front side) |
Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | ||||||
| Obtained standards |
EC Directives, KC, cUL508 | ||||||
| Operating environment |
No corrosive gases. | ||||||
| Noise immunity |
Compliant with IEC61000-4-4, 2 KV (Power cable) | ||||||
| Ambient operating temperature |
0 to 50°C | ||||||
| Ambient operating humidity |
10% to 90% RH (without condensation) | ||||||
